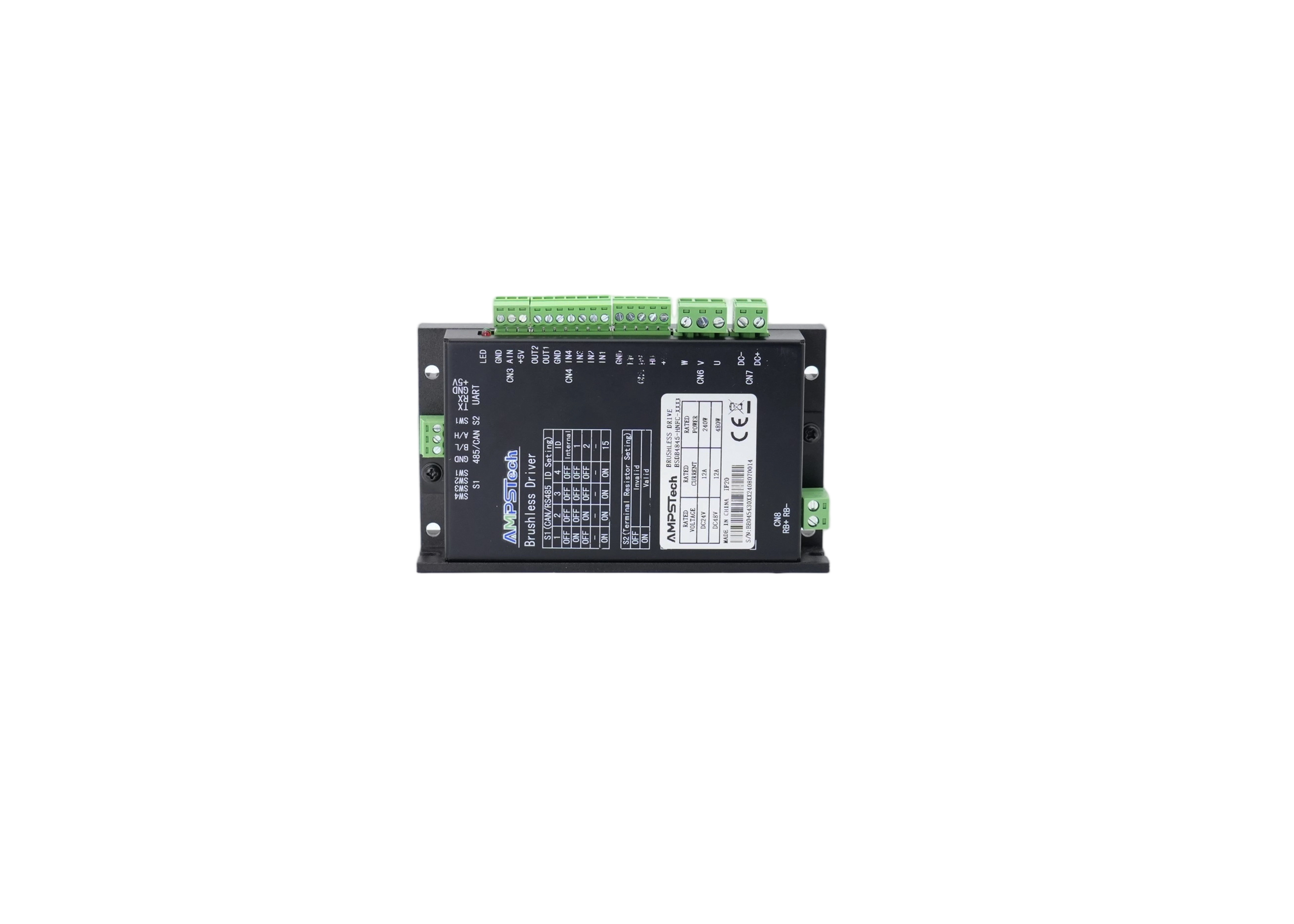

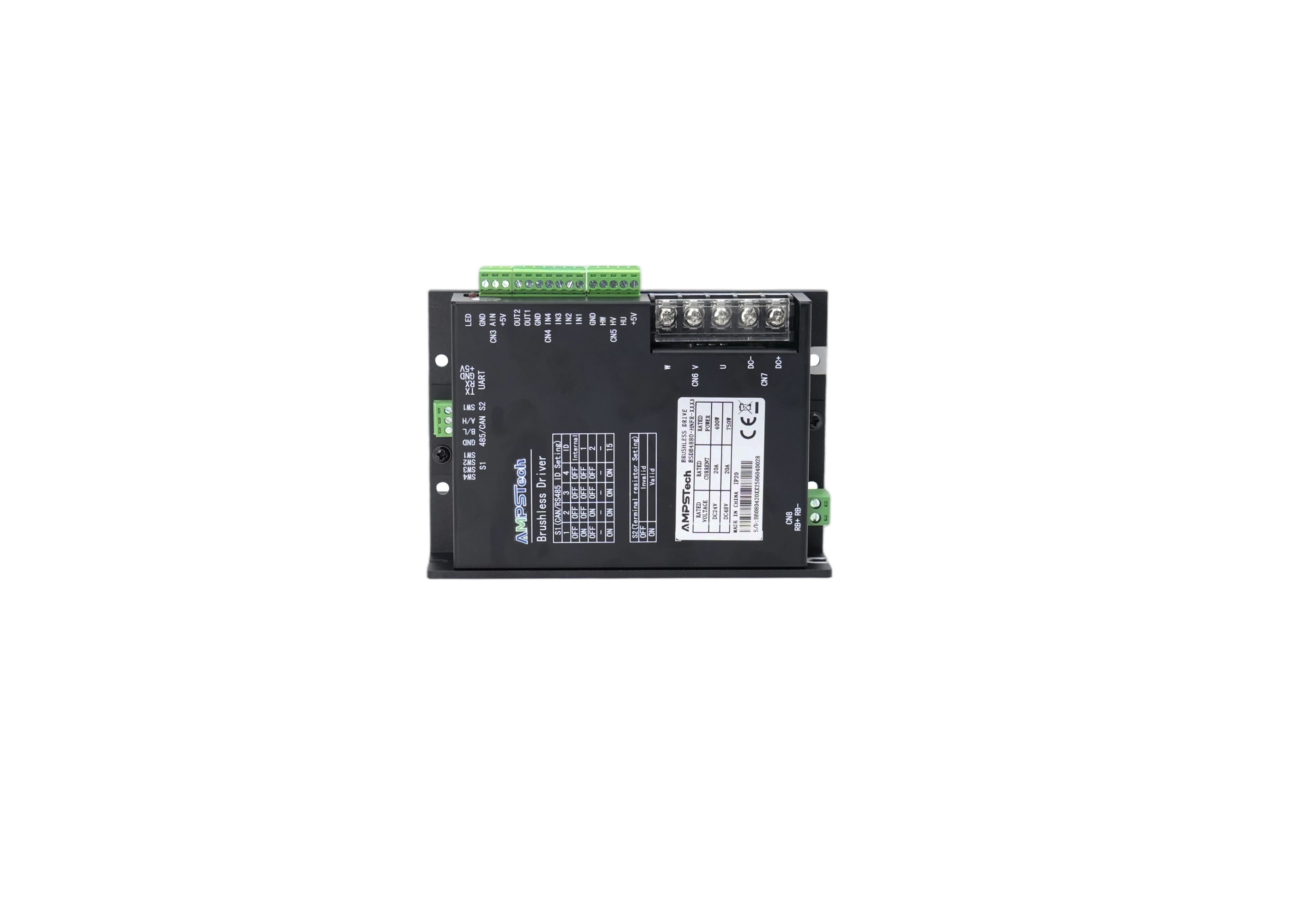

BSDB Series Brushless DC Driver

Product details

Features:

Wide adaptability: Supports 10-60VDc, 22Arms (peak 80Ap), compatible with various brushless motors, high load performance,meetsindustrialneeds

Superlor performance:Through sine wave control technology, the magnetic field is precisely regulated, reducing motoienergy consumption, stabilizing torque, and minimizing noise to maximize efficiency.

High security:Built-in protection for overvoltage, undervoltage, overheating, and motor overload (lT) ensures safety and reliability under high-load conditions.

Diverse modes:intearates speed, position, homing, and open-loop (simole torauel modes for precise control of motorspeed, positioning, homing, and torque output, meeting diverse industrial control needs across various scenarios.

Abundant functions:Equipped with multiple digital inputs and outputs, supporting emergency stop, alarm reset, multi-speed, and multi-position control functions, suitable for diverse application scenarios.

Diverse communication options:Supports UART, RS485, CAN, and other communication protocols, with adjustablebaud rates,enabling seamless integration with various control systems.

Drive Model		BSDB2425	BSDB4845	BSDB4880
Supported Motor Type		Brushless DC motor
Input Voltage Range		10~30V	20~60V
Continuous Current		6Arms	12Arms	22Arms
Peak Current		45Ap	100Ap	160AP
Feedback Signal		TTL Hall signal
Dynamic Braking		Support external braking resistor
Dynamic Braking Voltage		DC32V(default value, settable)	DC65V(default value, settable)
Over-voltage Alarm Voltage		DC36V	DC70V
Under-voltage Alarm Voltage		DC8V	DC18V
Cooling Method		Natural cooling
Weight		0.34kg	0.6kg	0.8kg
Common Functions	Input Specifications	6 digital inputs, common COMI terminal	4 digital inputs, common COMI terminal
	Input Functions	Driver Enable, Alarm Reset, Emergency StopForward Position Limit,Reverse Position LimitMulti-Speed Control, Multi-Position Control
	Output Specifications	2 digital outputs, common COMO terminal
	Output Functions	Driver Ready, Driver Error, Motor Zero Speed, and Limit Activated, among others
	Analog Input Functions	Analog Input AlN, +5V Output, GND
	UART	Default baud rate 115200, maximum support 115200, can be connected with AMPS PC software, can also use custom protocol to communicate with the controller
	Protection Functions	Overvoltage Protection, Undervoltage Protection, Motor Overheat (\|T)Protection. etc.
UART Baud Rate		115200bps (default value, can be modified)
RS485 Baud Rate		115200bps (default value, can be modified)
CAN Baud Rate		500Kbps (default value, can be modified)
