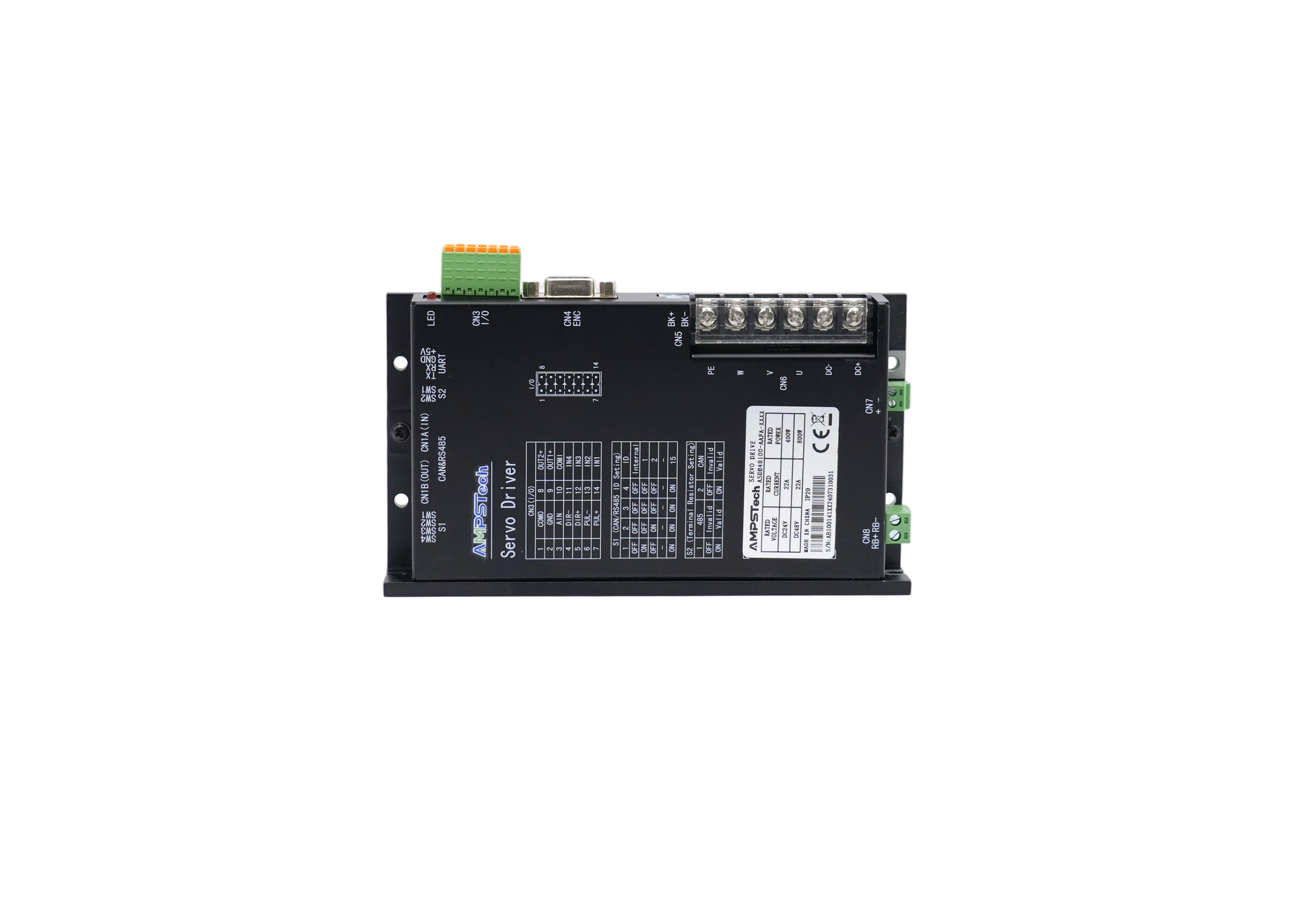

ASDB Series DC Servo Driver

Product details

‍‍Features:

Superior performanc:The system employs a servo control algorithm with capabilities of current loop, speed loop, andposition loop control, achievingefficientprecisemotor operation

High compatibility:Supports incremental and absolute encoders, high precision, UART/RS485/CAN communication,adjustable baud rate,suitable for diverse industrial devices.

Flexible configuration:Equipped with digital 1/0 interfaces, configurable for emergency stop input, alarm output, andother functions, compatible with various brake configurations, suitable for complex applications

Well-designed:Natural cooling design with precise current control reduces heat generation and supports externalbraking resistors.

Strong anti-interference capability:Excellent EMC performance efectively suppresses external electromagnetic interference, ensuring stable and reliable operation in complexindustrial environments.

High security:Built-in overvoltage, undervoltage, overload, and overtemperature protection functions supporoperation in -10 to 40'Cenvironments, ensuring safe high-load operation.

Drive Model		ASDB4845	ASDB48100	ASDB48160
Supported Motor Type		Servo motor
Input Voltage Range		20~56V
Continuous Current		12Arms ( without auxiliary cooling） 15arms（with auxiliary cooling）	22Arms（without auxiliary cooling） 30arms（with auxiliary cooling）	35Arms（without auxiliary cooling） 45arms（with auxiliary cooling）
Peak Current		45Ap	100Ap	160AP
Feedback Signal		Incremental differential encoder(5V)、Tamagawa protocol communication encoder
Dynamic Braking		Support external braking resistor
Dynamic Braking Voltage		DC65V(default value, settable)
Over-voltage Alarm Voltage		DC70V
Under-voltage Alarm Voltage		DC18V
Cooling Method		Natural cooling
Weight		0.34kg	0.6kg	0.8kg
Common Functions	Input Specifications	4 digital inputs, common COMI terminal, high level: 12VDC~30VDC, low level: 0~5VDC, maximum frequency 1kHz, input impedance 5kΩ
	Input Functions	Configurable functions include driver enable, alarm reset, emergency stop, positive limit, negative limit, multi-speed control, multi-position control, etc.
	Output Specifications	2 digital outputs, common COMO terminal
	Output Functions	Configurable functions include driver ready, driver error, motor zero speed, motor brake effective, limit effective, etc.
	Brake Output	Default 24VDC brake output, configurable voltage 0VDC~input voltage, configurable brake duty cycle
	Pulse Control	Pulse + direction, CCW + CW, A phase + B phase (5V-24V)
	TTL232	Default baud rate 115200, maximum support 115200, can be connected with Amps master station, can also use custom protocol to communicate with the controller
	Protection Functions	Overvoltage protection, undervoltage protection, motor overheating (I²T) protection, short circuit protection, driver overheating protection, etc.
UART Baud Rate		115200bps (default value, can be modified)
RS485 Baud Rate		115200bps (default value, can be modified)
CAN Baud Rate		500Kbps (default value, can be modified)
