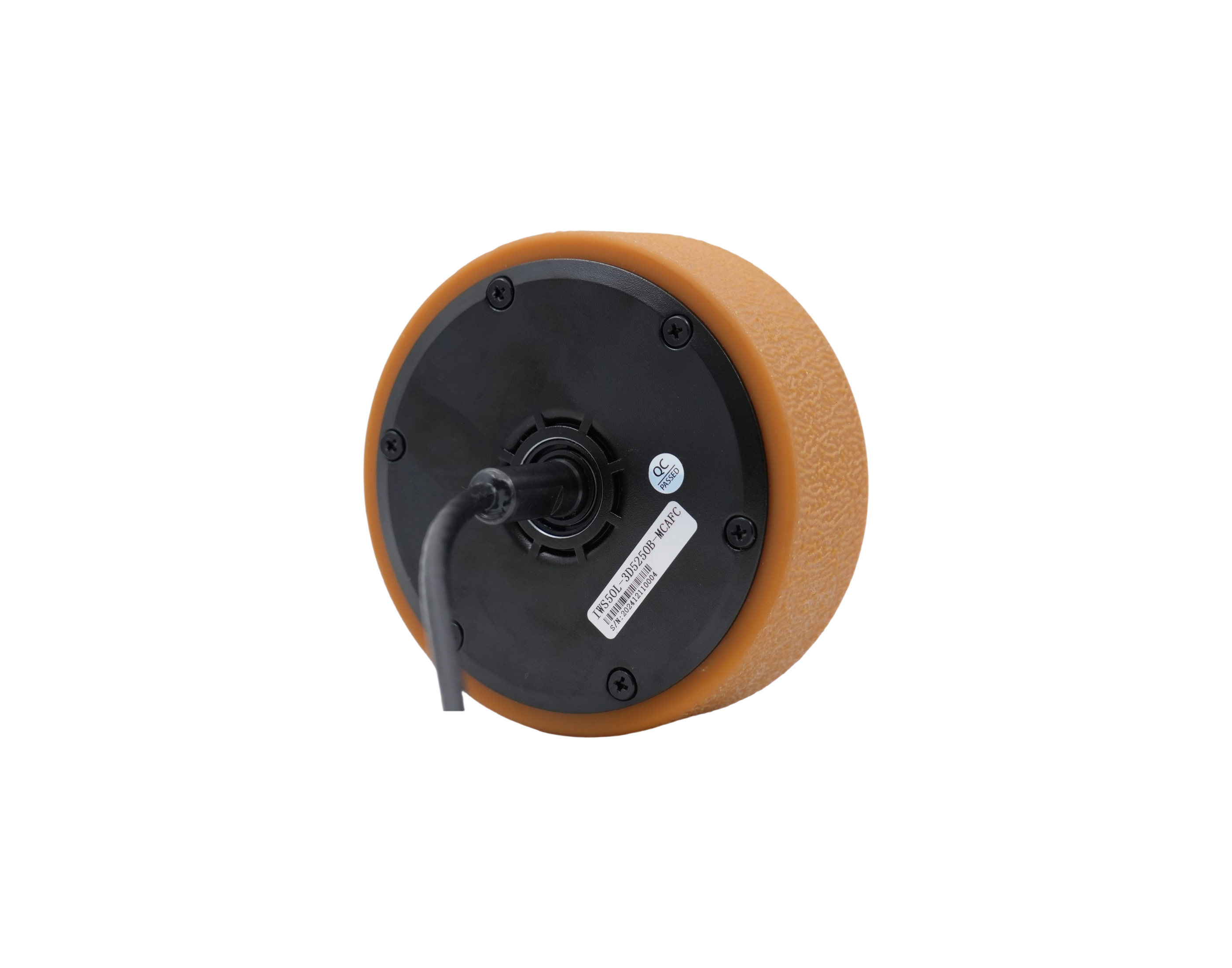

5 Inch 3.5 Nm Anti-slip Integrated Hub Servo Motor

PRODUCT > Servo Hub Drive System > 5 Inch 3.5 Nm Anti-slip Integrated Hub Servo Motor

Servo hub motor,another name called hub servo motor,servo wheel or electric wheel.

Specifications:

Parameter	IWS50L-3D5250B-MCAFC
Rated Voltage	24VDC
RatedCurrent	5.8Arms
Maximum Speed	Rotary speed 250rpm Line speed 1.7m/s
Rated Torque	3.5 N.m
Maximum Torque	8N.m
Communication	UART+CAN
Line length	50cm
Insulation Resistance	≥200MΩ
Withstand voltage	600VDC 1SEC 10mA
RoHS	RoHS
Tire hardness grade	A68
Operating temperature	-10℃～40℃（Non-frozen）
Working humidity	5～95%RH（Non-condensation）
Stored temperature	-10℃～70℃ (Non-frozen)
Storage humidity	Below 90%RH(Non-condensation）
Protection level	IP67(Except shaft)
