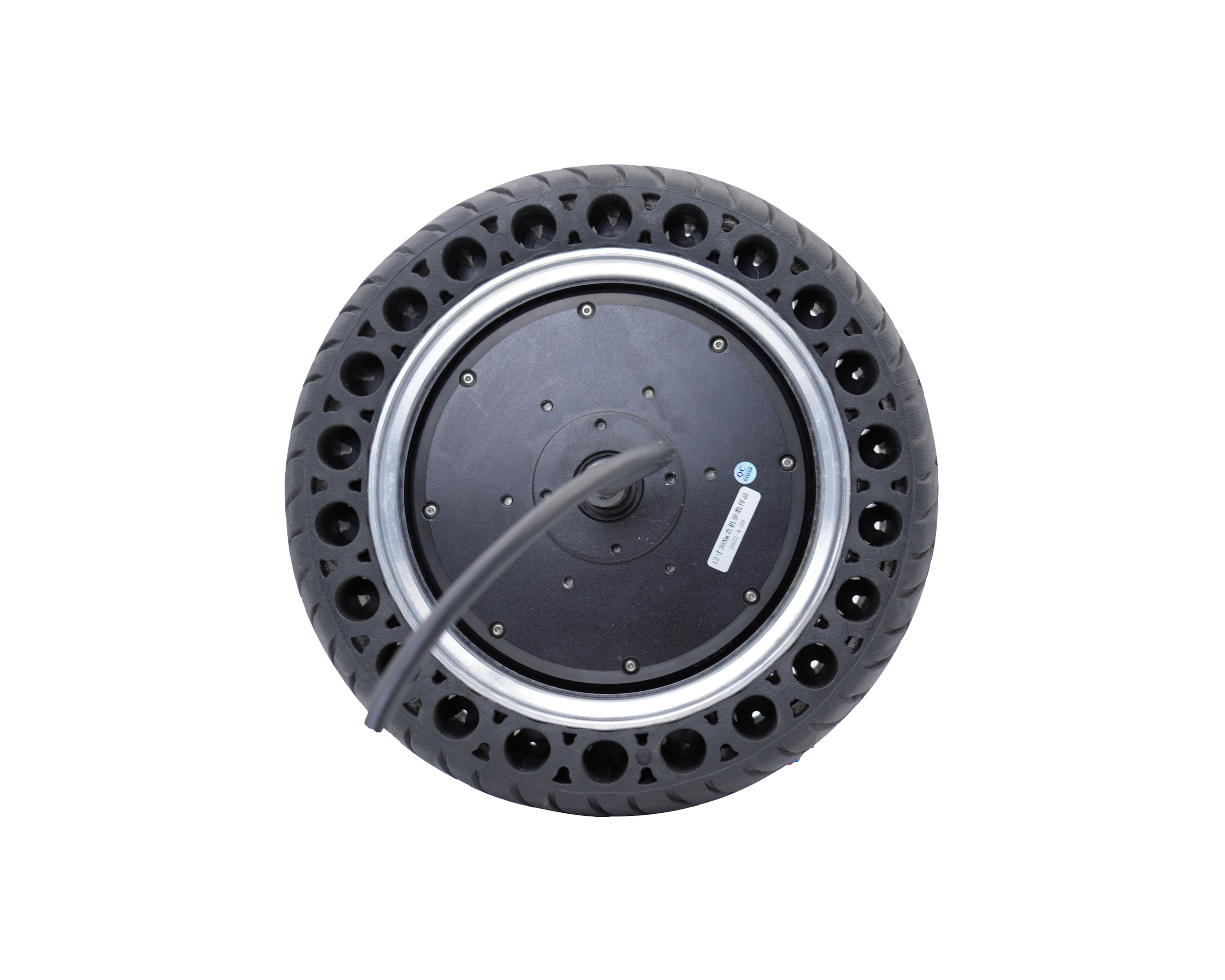

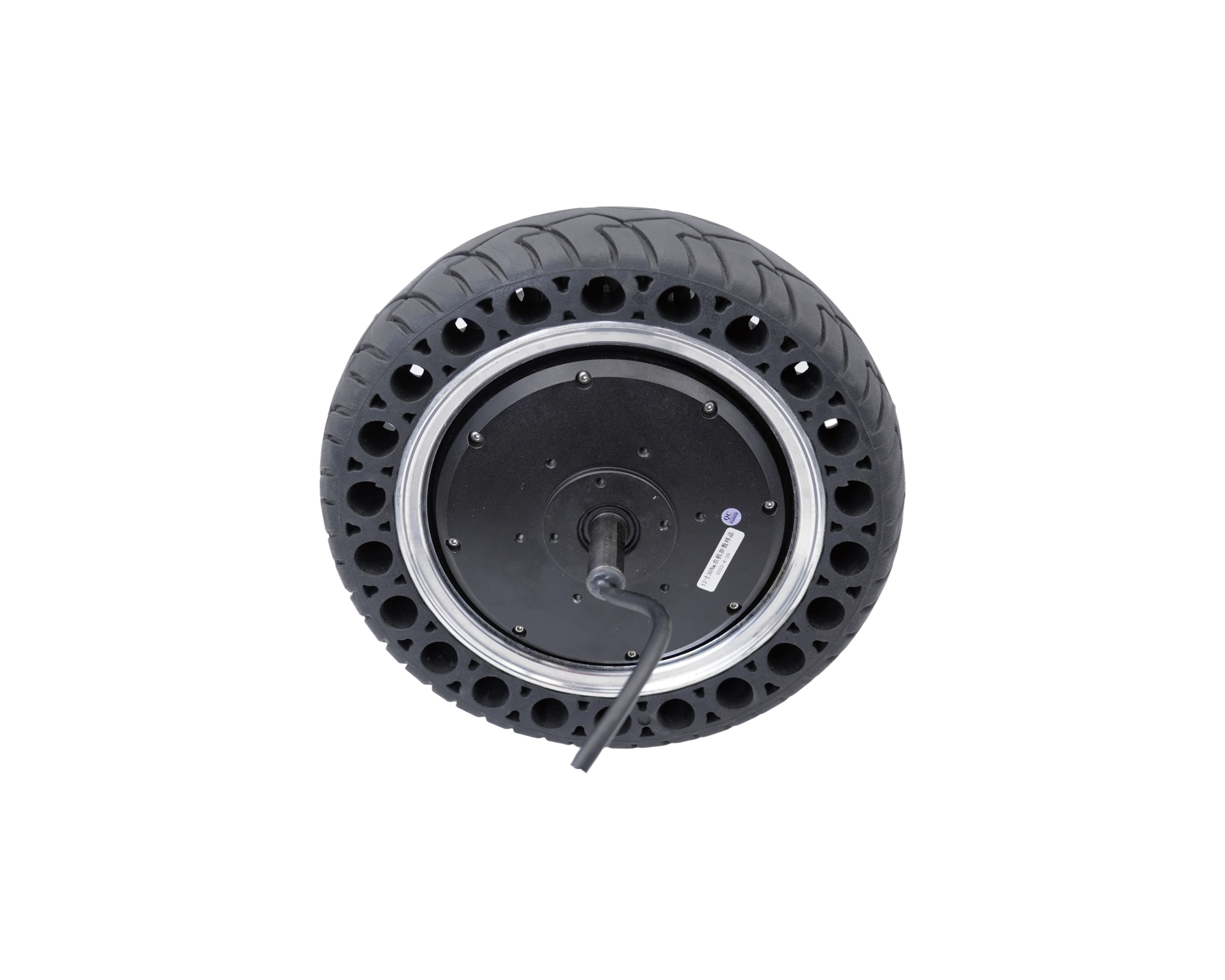

12 inch 30Nm servo hub motor
12 inch 30Nm servo hub motor
Servo hub motor,another name called hub servo motor,servo wheel or electric wheel.
Specifications
Parameters | WSC0L-30A250D-MFGA05 | ||
RatedVoltage | 48VDC | ||
RatedCurrent | 15 Arms | ||
Maximum speed | Rotary speed 250rpm Line speed 4.1m/s | ||
30N.m | |||
Peak Torque | 50N.m | ||
InsulationResistance | ≥200MΩ | ||
Withstand voltage | 600VDC 1SEC 10mA | ||
RoHS | RoHS | ||
Hardness Class | A68 | ||
Operating temperature | -10℃～40℃（Non-frozen） | ||
Working humidity | 5～95%RH（Non-condensation） | ||
Stored temperature | -10℃～70℃ (Non-frozen) | ||
Storage humidity | Below 90%RH(Non-condensation） | ||
Protection Class | IP67 | ||
