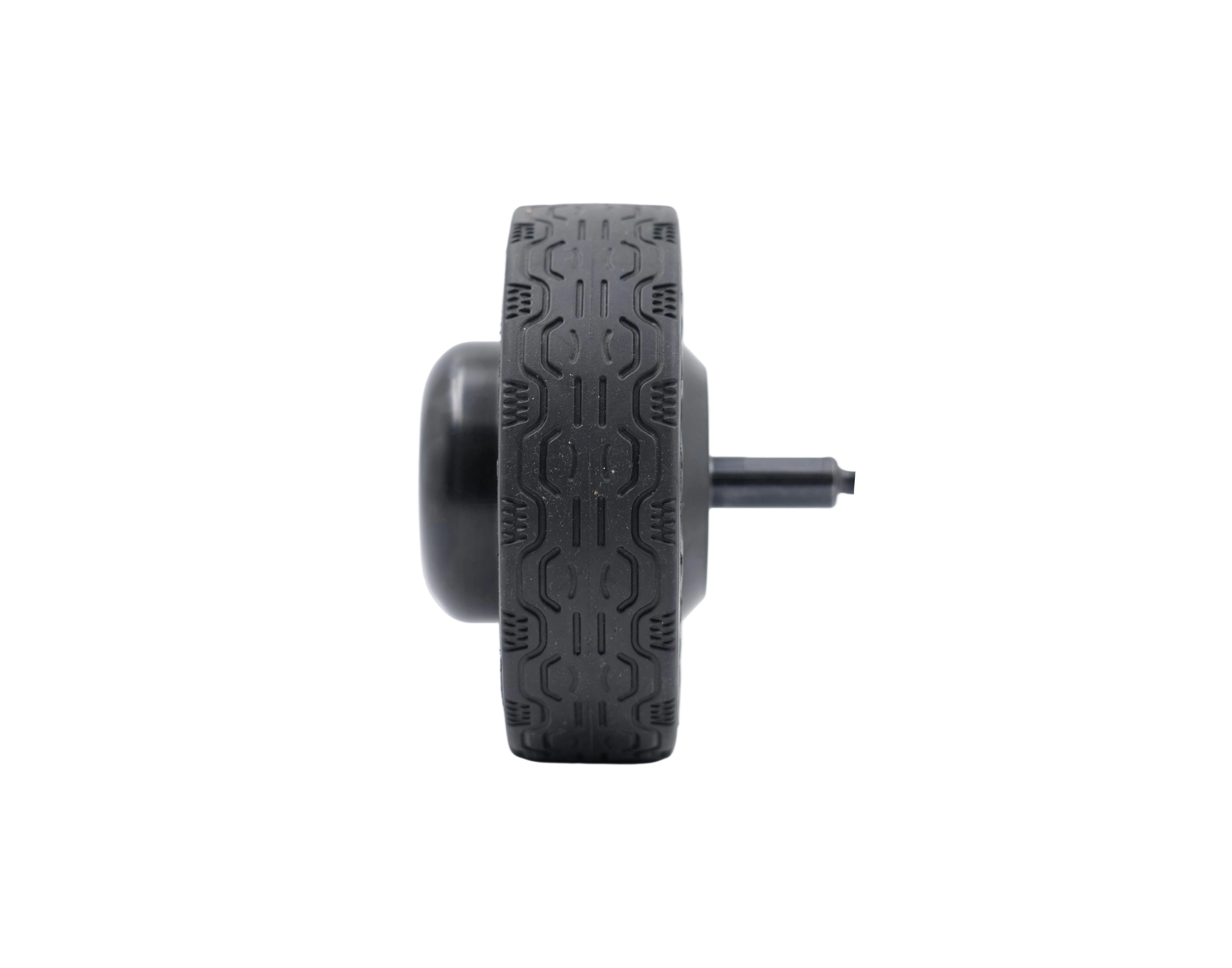

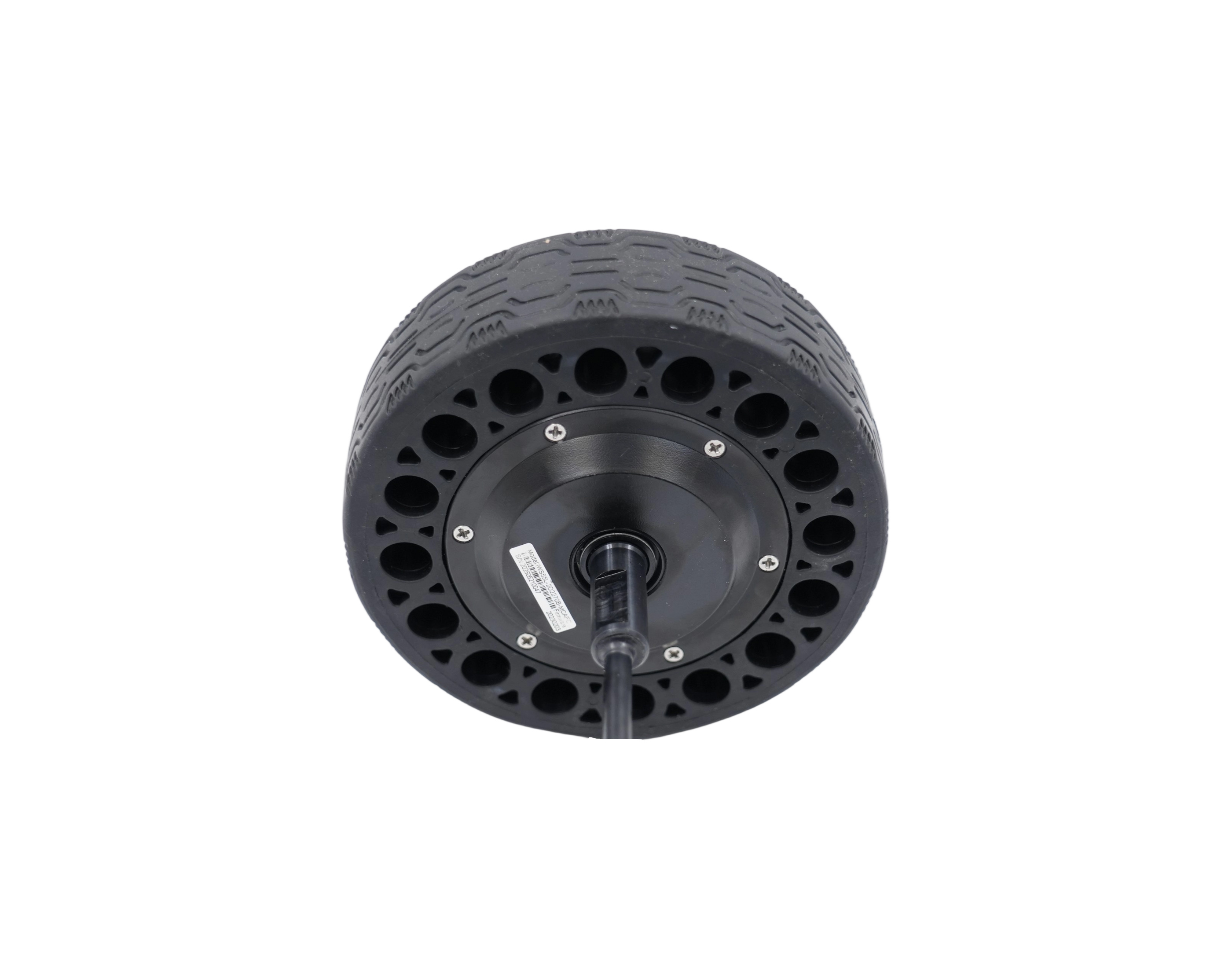

5.5 inch 2.2Nm integrated servo hub motor
5.5 inch 2.2Nm integrated servo hub motor
Servo hub motor,another name called hub servo motor,servo wheel or electric wheel.
Specifications
Parameter | IWS55L-2D2270B-MCAFC |
Rated Voltage | 24VDC |
RatedCurrent | 3.7Arms |
Maximum Speed | Rotary speed 270rpm Line speed 2m/s |
2.2 N.m | |
Maximum Torque | 3.5N.m |
Communication | UART+CAN |
Line length | 50cm |
Insulation Resistance | ≥200MΩ |
Withstand voltage | 600VDC 1SEC 10mA |
RoHS | RoHS |
Tire hardness grade | A68 |
Operating temperature | -10℃～40℃（Non-frozen） |
Working humidity | 5～95%RH（Non-condensation） |
Stored temperature | -10℃～70℃ (Non-frozen) |
Storage humidity | Below 90%RH(Non-condensation） |
Protection level | IP67 |
