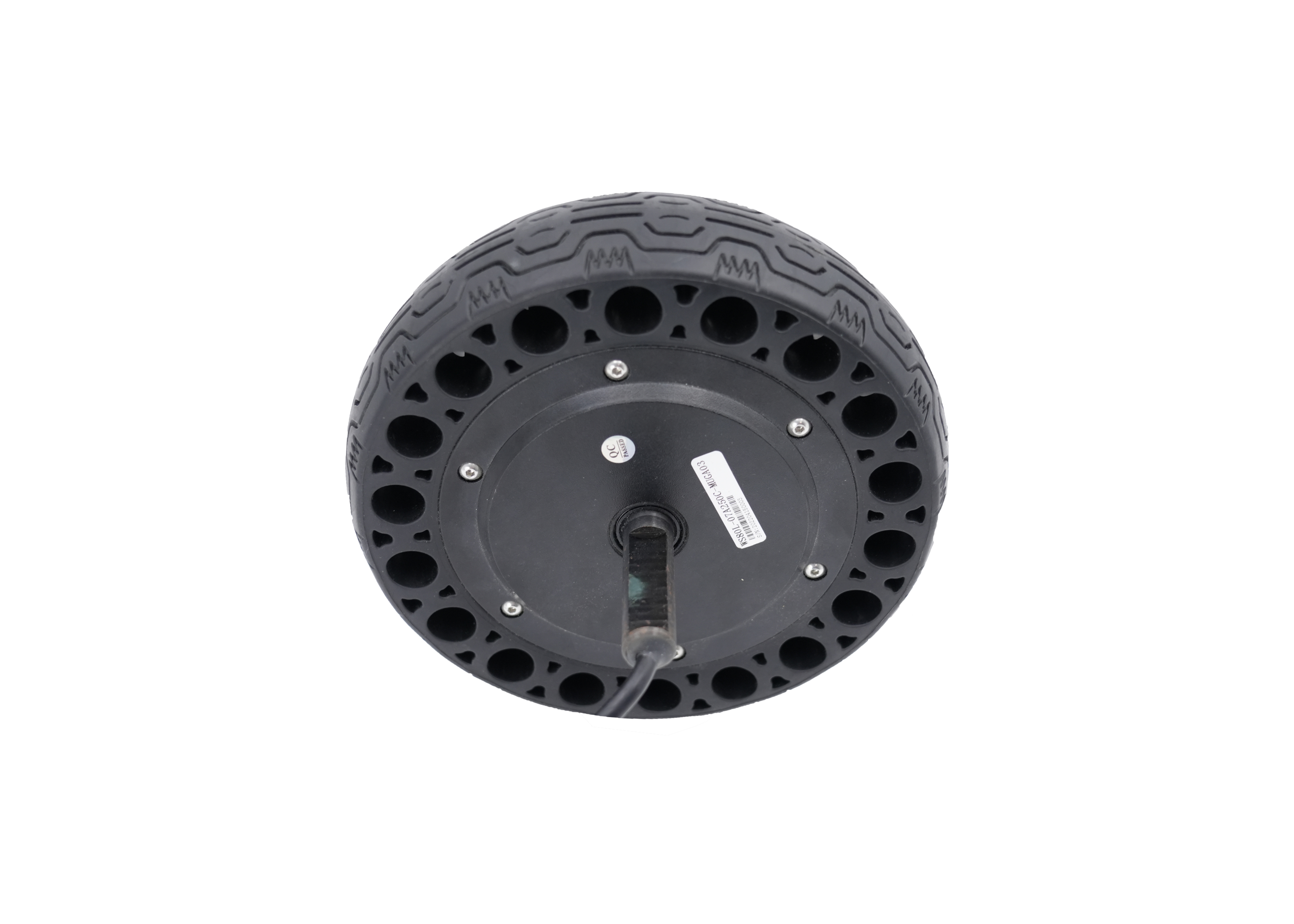

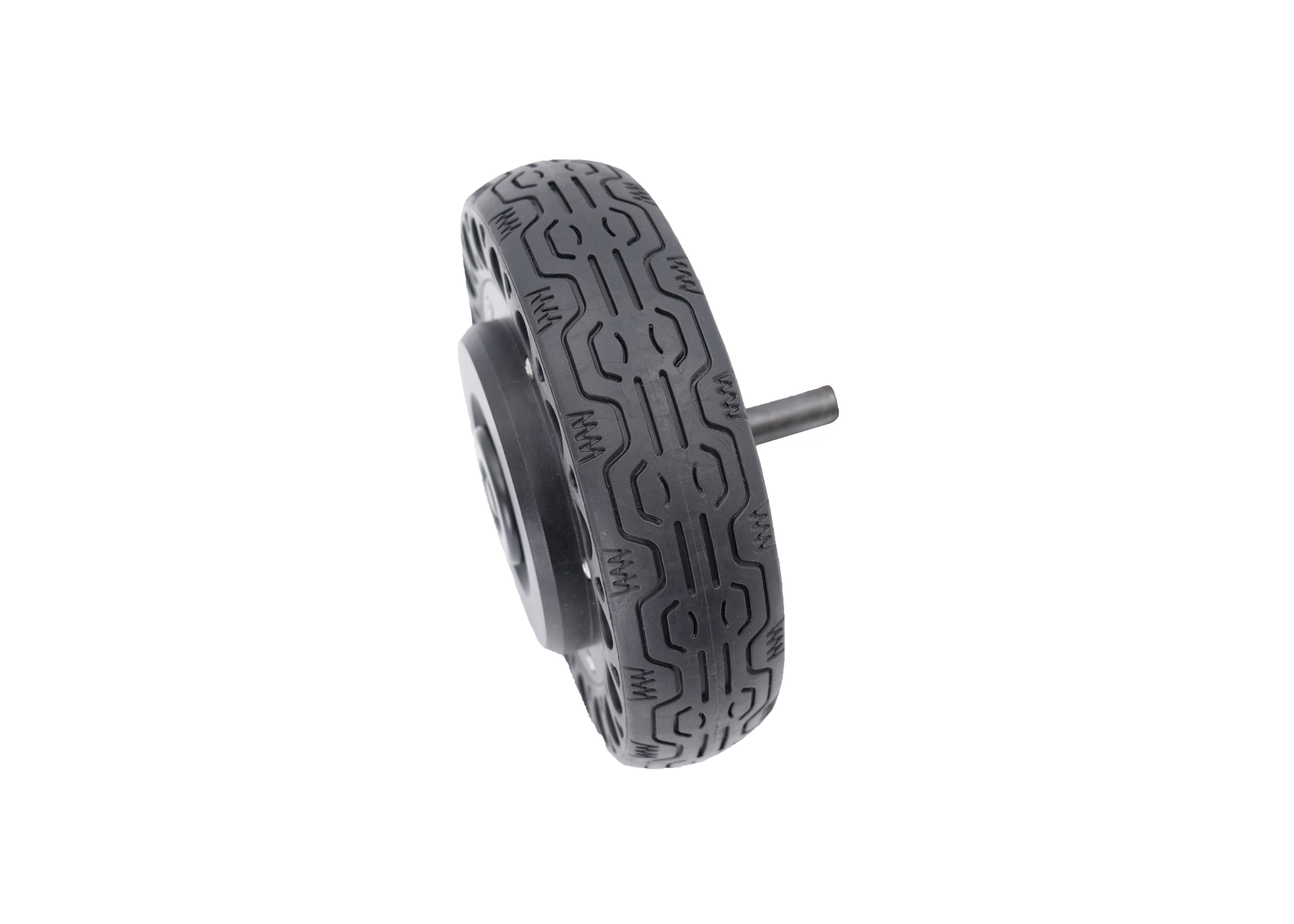

8 inch 7Nm servo hub motor

PRODUCT > Servo Hub Drive System > 8 inch 7Nm servo hub motor

8 inch 7Nm servo hub motor

Servo hub motor,another name called hub servo motor,servo wheel or electric wheel.

Specifications

Parameters

WS80L-07A250C-MUGA03

RatedVoltage

36VDC

RatedCurrent

7Arms

Maximum speed

Rotary speed 250rpm

Line speed    2.6m/s

RatedTorque

7N.m

Peak Torque

18N.m

InsulationResistance

≥200MΩ

Withstand voltage

600VDC 1SEC 10mA

RoHS

RoHS

Hardness Class

A68

Operating temperature

-10℃40Non-frozen

Working humidity

595%RHNon-condensation

Stored temperature

-10℃70℃ (Non-frozen)

Storage humidity

Below 90%RH(Non-condensation

Protection Class

IP67
